Place of Origin: | China |
Brand Name: | Hirono |
Certification: | ISO9001 |
Model Number: | 255x1.9x1.4x80z |
Minimum Order Quantity: | 10PCS |
---|---|
Price: | Negotiable |
Packaging Details: | Case packing |
Delivery Time: | 25-30 days |
Payment Terms: | T/T,D/P at sight |
Supply Ability: | Monthly 1000PCS |
High Light: | power saw blade,aluminum saw blade |
---|

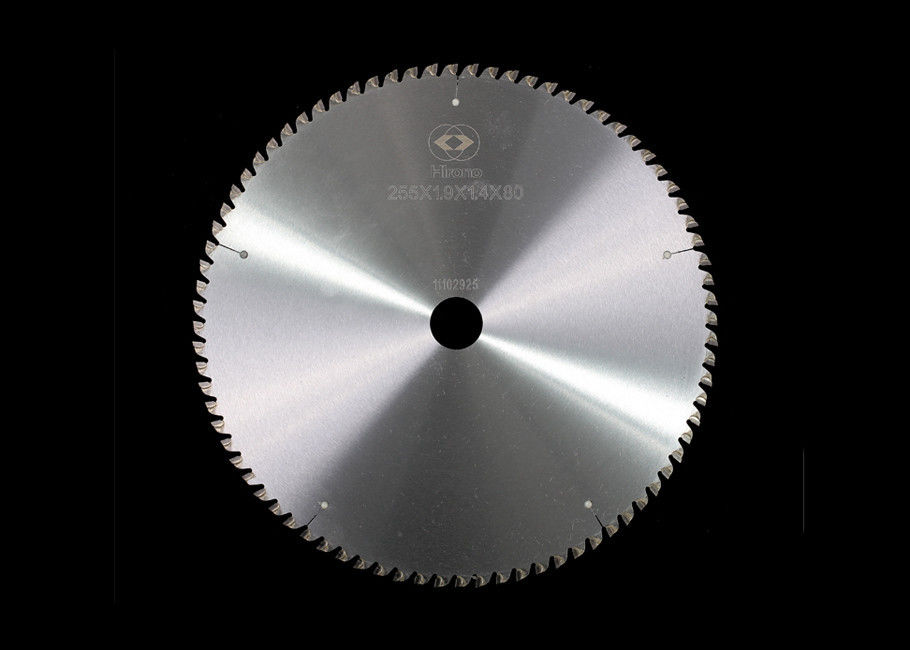

Cermet tip Metal Cutting Saw Blades54z 60z Japanese Tip cold saw blade 250mm 285mm
Quick detail:
1. Edge (tip) material: Cermet. Cermet tip imported from Japan, we’re using Mitsubishi or Sanvik.
2. Body use Japanese SKS steel. SKS51 or SKS5.
3. Cooling copper design. Keep cool during cutting.
4. Flattening and Surface grinding ensure the plates that are distoriton free and have uniform thickness.
5. Unique angle of tip and unique shape of tip. Design for Stainless edge pipe cutting.
6. Unique Heat treatment for the plates, make sure the plates are very flat.
7. Special brazing technology make sure the strength of the teeth to preven carbide breakage.
8. High dimensional accuracy make sure the working smooth.
9. Unique tension treating. Keep the most stable while cutting.
10. Special coating for stainless steel cutting.
11. Suitable for most metal cutting machine in the world. Nishijia, Amada, Anderson, Tsune, Mega, Fongho,Soco,Everising, I.T.E.C. and so on.
12. Japanese technology. Design in japan.
13. Remain cool while cutting. Enlarge the using life.
Diameter |
Kerf |
Plate |
Teeth number |
Teeth type |
Hook Angle |
Recommend RPM |
Machine |
Cutting material |
255mm |
1.9mm |
1.4mm |
80 |
Cermet tip |
below 300 |
NISHIJIAMA,TSUNE, DELTA,ANDERSON, I.T.E.C,AMADA,MEGA, SOCO,FONGHO, Webo,and other suitable metal cutting machine. |
stainless edge pipe |
Advantage:
Cutting material recommend:
Diameter | Teeth | Recommend diameter of material |
255mm | 80 | 25~45mm |
Machines recommend:
Diameter | Machine manufacturer | Machine model |
255mm | Noritake | NCS-2/50 |
255mm | Kasto/Wanger | Wac-70 |
*The list haven't show the all machines. All the metal cutting cold saw machines can use our saw blade.
Benefit:
Different from band saw and metal saw (hss). The cold saw blade will give you lots of benefit.
One cold saw mahine can replaces three band saws or metal sawmachines.
1. Less sapce
2. Less labor
3. Less environmental pollution
4. Less captial outlay
5. lower cost per cut
6. Saving the cutting time.
Please click here to download our new catalogue
