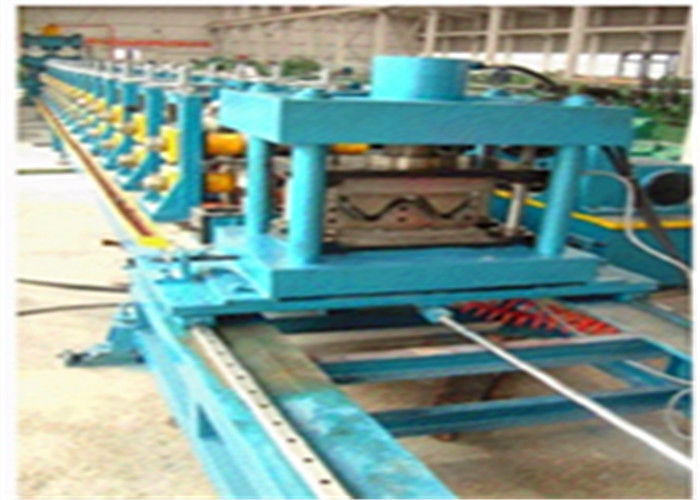

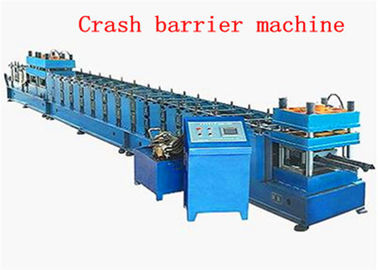

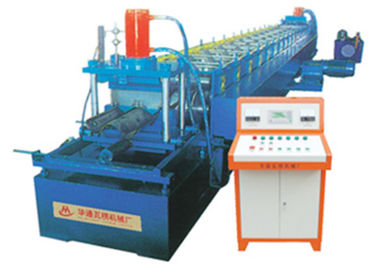

Metal Steel High Speed Guardrail Roll Forming Machine 3-10m/Min

Metal Steel High Speed Guardrail Roll Forming Machine 3-10m/Min

    • Metal Steel High Speed Guardrail Roll Forming Machine 3-10m/Min
    • Metal Steel High Speed Guardrail Roll Forming Machine 3-10m/Min
    • Metal Steel High Speed Guardrail Roll Forming Machine 3-10m/Min
    • Metal Steel High Speed Guardrail Roll Forming Machine 3-10m/Min
  • Metal Steel High Speed Guardrail Roll Forming Machine 3-10m/Min

    Product Details:

    Place of Origin: China
    Brand Name: HuaTong
    Certification: ISO9001:2008
    Model Number: guardrail roll forming machine

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiation
    Packaging Details: main machine is covered by plastic film
    Delivery Time: 45 days after receipt of the advance deposit.
    Payment Terms: T/T,L/C
    Supply Ability: 30 Sets per Month
    Contact Now
    Detailed Product Description



    Metal Steel High Speed Guardrail Roll Forming Machine 3-10m/Min





    Quick detail



    Name

    Guardrail roll forming machine

    Application

    Road

    Color

    Any

    PLC

    TAIDA

    Line speed

    3-10m/min

    Tile

    Steel

    Warranty

    1 year

    Certification

    ISO9001:2008

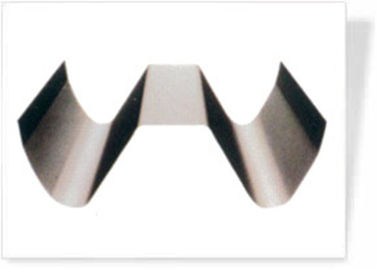

    Profile drawing of the production



    Metal Steel High Speed Guardrail Roll Forming Machine 3-10m/Min



    Production flow chart of the roll forming machine

    Metal Steel High Speed Guardrail Roll Forming Machine 3-10m/Min

    Functional features :

    1.Our machine can use galvanized steel sheet,colored armor plate or aluminum plate as the material plate.

    2.Controlling by computer,PL display,operationis easy,running is steadyand reliable,endurable,maintence-free.

    3.We can make and design what kinds of roll forming machine according to the request of customers.

    4. OEM / ODM ,Customers` Design ,Size,Color&Logo are accepted.

    5. With 20 years professional manufacture experience

    6. Prompt Delivery&Competitive Price

    7. Main markets: Middle East, Europe, North America, Africa,Southeast Asia, Latin America etc.

    8. After-sales service:

    1.We provide the technical support for whole life of our machines.

    2.If buyers need the technician to go abroad ,we will arrange the technician,but the buyers should take all the

     cost,including visa,roundtrip ticket etc.







    Specification



    condition

    New

    voltage

    380V/50HZ/3 Phases

    certification

    ISO9001:2008

    Type of machine

    Tile roll forming machine

    Motor power

    18.5kw

    warranty

    1 year

    Production capacity

    15m/min

    Dimension

    12m*1.0m*1.3m

    Step of roller

    16 steps

    weight

    About 15T

    After-sales service provide

    Engineers available to service machinery overseas

    Diameter of shaft

    95mm

    Line speed material of shaft

    3-10m/min

    Material of roller

    GCr15

    Material of shaft

    45#steel

    Treatment of roller

    hard chromize coated 0.05-0.07mm

    Material of frame

    (high grade)360mm H shape steel welding

    Thickness of plate

    25mm

    Drive type of roll forming machine

    chain

    Chain

    50.8(high grade)

    Bearing

    6312(high grade)

    Reducer

    8#cycloid reducer(high grade)

    Feeding width

    486mm

    Suitable coil thickness

    Accepted thickness for steel coil is 2.5mm-3.0mm

    Oil pump of hydraulic station

    Gear oil pump

    Hydraulic fly saw cutter

    Cutting controlled by PLC

    Accuracy of cutting

    +/- 2mm



    Razor blades material

    Cr12, quenching 58-62

    Electrically controlled system

    Entire machine controlled by PLC

    Frequency converter

    DELTA(TAIWAN)

    Frequency converter power

    5.5KW

    Encoder

    RUI PU(high grade)

    Controlling desktop

    Text panel screen(high grade)

    Electrical parts

    DELIXI or CHINT





    Machine componets:



    (1) Manual un-coiler                                 1 set

    (2) Feeding device                                   1 set

    (3) Roll-forming M/C                                1 set

    (4) Hydraulic cutter                                  1set

    (5) PLC control system                               1 set

    (6) Hydraulic station                                 1 set

    (7) Product rack (un-powered)                         1 set





    Applications:



    It use for industrial workshop, residential house, warehouse, simple steel shed etc.





    Why to choose our roll forming machine?



    We know there are many companies you can choose, and maybe you think our price is higher than others, so I will introduce the different between our products and others. And how to choose the good machine. And why ours is higher.



    1  Our shaft is solid, low price is hollow ,the use steel pipe instead of shaft. The shaft is one of the most important about the machine, we know it main press the plate, if the shaft is low quality, it can’t bear the pressure ,so it’s easy to broke. So this is one about our high price, we ensure the quality.

    Our shaft is 45# steel, quenching and tempering treatment, low price is ordinary steel and no quenching and tempering treatment, and our roller is bigger than low price machine, and the treatment of roller surface is hard chromize coated 0.05-0.07mm, low price is 0.01-0.03mm even they paint silver powder instead of chromize coated.





    2  Our offer is for the whole roll forming machine line

    3  Our machine line is full-automatic

    4  Diameter of shaft : our is 74mm, low price is 50-60mm.

     5 Size of roller : our is bigger than low price machine

     6 Size of chain : our is 25.4 mm (high grade and “DONGHUA BRAND”famous brand of China), low price is 19.05mm(not high grade and famous brand of China).

    7  Bearing : 6210 (high grade and “HAERBIN BRAND”famous brand of China), low price is not high grade and famous brand of China.

    Motor and Reducer : our is 5# cycloid reducer (high grade and “MENGNIU BRAND” famous brand of China), low price is 4#(not high grade and famous brand of China).

    8  Oil pump of hydraulic station : gear oil pump (high grade). Low price is not gear oil pump.

    9  Razor blades material : our is Cr12, quenching 58-62 °. Low price is not Cr12, quenching 58-62 °.

    10 Frequency converter : our is DELTA(Made in TAIWAN), our machine can reach accuracy of cutting : +/- 2mm, low price machine do not have frequency converter, their machine can not control accuracy of cutting.

    11 PLC : our is DELTA(Made in TAIWAN), low price use low price PLC.

    12  Encoder : RUI PU(high grade and famous brand of China)
