Bore 5/8", 1", 20mm Thick Circular Saw Blade To Cut Metal , Cutting Acrylic

Bore 5/8", 1", 20mm Thick Circular Saw Blade To Cut Metal , Cutting Acrylic

  • Bore 5/8", 1", 20mm  Thick Circular Saw Blade To Cut Metal , Cutting Acrylic
  • Bore 5/8", 1", 20mm  Thick Circular Saw Blade To Cut Metal , Cutting Acrylic
Bore 5/8", 1", 20mm  Thick Circular Saw Blade To Cut Metal , Cutting Acrylic
Product Details:
Place of Origin: China
Brand Name: YEYI
Model Number: YEYI-450x4.0x3.2x120T
Payment & Shipping Terms:
Minimum Order Quantity: 10 PCS
Price: Negotiable
Packaging Details: Plastic pipe+ plastic bag+ paper box+ carton
Payment Terms: T/T
Contact Now
Detailed Product Description
Steel Core: Quality Steel Plate With Good Balance And Flatness Tips: Imported Carbide Tips Or Ceratizit Tips
Equipment: Auto Welding And Auto Grinding Machines Quality: Smooth Cutting And Long Cutting Life
High Light:

metal cut blade

,

thick circular saw blade

450MM Cutting Acrylic Aluminum Cutting Saw Blades With Ceratizit Tips Silent Core





Application:

  • Suitable for cutting acrylic, aluminum profiles, aluminum solid, copper, brass, non-ferrous metal. For aluminum profiles cutting, recommend choose α=+5°. For aluminum solid cutting, recommend choose α=-5°.
  • Bore: Available all size and kind upon request, such as 5/8", 1", 20mm, 22.23mm, 25mm, 30mm, 35mm, etc.
  • Teeth: Teeth number could be adjusted upon request.
  • Hook angle: could be adjusted upon request
  • High cutting speed with good balance and long service life
  • Cost-saving and no waste of materials



Specifications:

450x4.0x3.2x120T



Other sizes are as below:



CODE   Diameter  Kerf, B/b Teeth Number
α= +5° α= -5° (mm) (mm) α= +5° α= -5°
YYA 125  YYAN 125  125 2.6/1.6  30,36  36,40
YYA 150  YYAN 150  150 2.6/1.6  42,48  48
YYA 165  YYAN 165  165 2.6/1.6  48,50  48,50
YYA 180  YYAN 180  180 2.8/1.8  56 56
YYA 200  YYAN 200  200 2.8/1.8  60,62  62,64
YYA 216  YYAN 216  216 2.8/1.8  60,62  62,64
YYA 230  YYAN 230  230 3.0/2.0  64,72  64,72
YYA 250  YYAN 250  250 3.0/2.0  72,80,100,120  72,80,100,120
YYA 300  YYAN 300  300 3.2/2.2  72,84,96,120  72,84,96,120
YYA 350  YYAN 350  350 3.2/2.2  84,96,108,120  84,96,108,120
YYA 400  YYAN 400  400 3.5/2.5  96,108,112,120 96,108,112,120
YYA 420  YYAN 420  420 3.5/2.5  96,108,112, 120  96,108,112, 120
YYA 450  YYAN 450  450 3.8/2.8  108,120, 132  108,120, 132
YYA 500  YYAN 500  500 3.8/2.8  120,132,144 120,132, 144
YYA 550  YYAN 550  550 3.8/2.8  120, 132, 144  120, 132, 144
YYA 600  YYAN 600  600 4.0/3.0  120, 140, 160  120, 140, 160
YYA 650  YYAN 650  650 4.0/3.0  80, 120, 140  80, 120, 140
YYA 700  YYAN 700  700 4.2/3.2  80, 120, 150  80, 120, 150
YYA 750  YYAN 750  750 4.6/3.6  120, 140, 160  120, 140, 160,
Remark Other specifications & sizes are available upon request.







Advantages:

  • By using Japanese SKS steel and Ceratizit tips so as to keep the good quality and stable performance. With our design and techniques make Aluminum cutting easier and more clearly.
  • Unique teeth angle design could make sure the material could be cut clearly. Ultra-hard carbide tips could longer the cutting life. High efficiency without changing the blade frequently
  • Anti-shock slots and Cooling Cuprum design make the aluminum cutting easier and more stable. Smooth cutting with good balance. No waste of the cutting materials.
  • Anti-shock slots with colophony inside could reduce the vibration of the plate.
  • Cooling Cuprum design could make the plate cooling faster and improve stability of blade while cutting.
  • Different materials are to be applied to the different teeth. It is the best way to cut every material. By using our blades could save your time, money and materials. YEYI leads you to success.

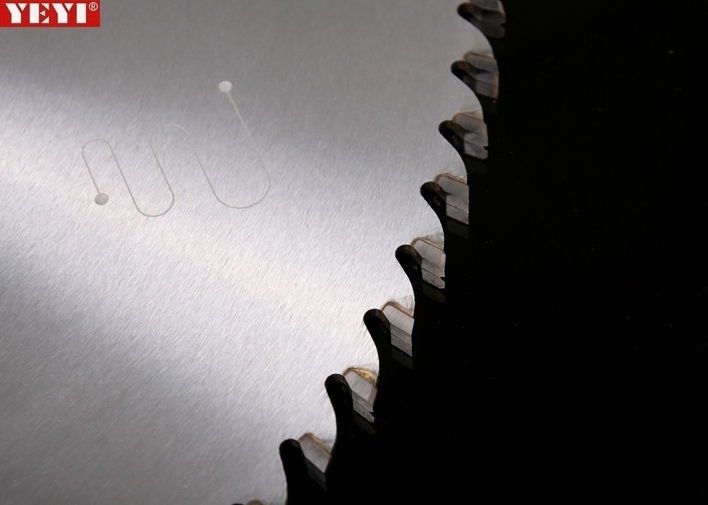

Bore 5/8", 1", 20mm  Thick Circular Saw Blade To Cut Metal , Cutting Acrylic 0





Contact us today to obtain the quality product from YEYI!
