Detailed Product Description

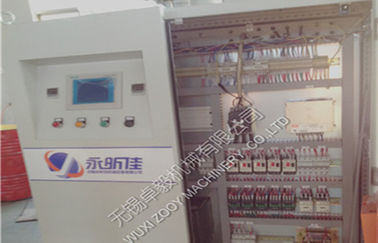

Feature: PU Sandwich Panel Cold Rolling Machine Control System Panel: Japan Panasonic PLC Control
Forming Speed: 4-6m/min PU Sandwcih Panel Thickness: 25-100mm
Material: Galvanized Sheet. Glavanized Steel Cutting Motion: Flaw Trcking Cutting



Flying Saw Cutting PU Sandwich Panel Machine , High Press PU Foaming machine







Profile Drawings Of PU Sandwich Panel





Flying Saw Cutting System PU Sandwich Panel Machine With 1 Set High Press PU Foaming machine 0





Machine Competitive Advantages





Advantage 1.When producing another size of 1 shape you just need to change the spacers.
Advantage 2.The forming speed can be reach to 15m/min which can bring high production effiency
Advantage 3.Cutting length, width, quantity are adjustable by PLC control system , hydraulic station provide the Cutting motor power for the cutting models
Advantage 4. Electrical motor gives the power to the chains or gear boxes to bring the machine to run It is very easy to install  the machine
Advantage 5.When producing another size of 1 shape you just need to change the spacers
Advantage 6.Professional engineers have more than 15 years' experience in designing rollers and Roof tile manufacturing mill
Advantage 7.Engineers adopted the advanced European technology and craft to design machines
Advantage 8.High accuracy, length cutting tolerance is +/-1.5mm(per) it can guarantee the produts produced by the machine are very beautiful
Advantage 9.Machine structure is very stable ,when machine running it is very safe

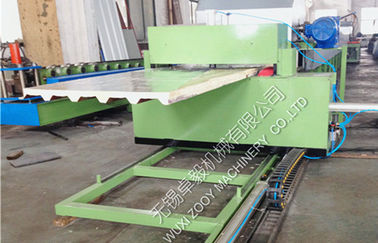

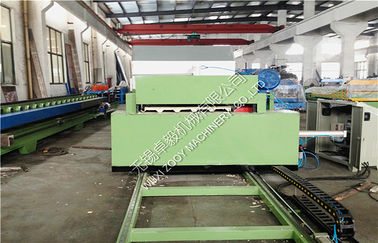

  • Cutting adopts tracking cutting,and saw (or fly saw) of the cutting machine can move transversely 1500mm, Cutting machine moves longitudinally and transversely along the slide way
  • Cutting machine adopts one-side blade band saw manner, cutting and revolving after cutting. The cutting saw can revolve, so cutting in two directions is realizable



Working Technical Flow



Decoiler --Feed And Guide--Main Roll Forming--Polyurethane Foaming And Injecting--Heating-- Compressing--Hydraulic Cutting--Product To Run out Table



Compositions of the machine



  • Decoiler------------------------------------------------------------1 set
  • Main roll forming machine--------------------------------------1 unit

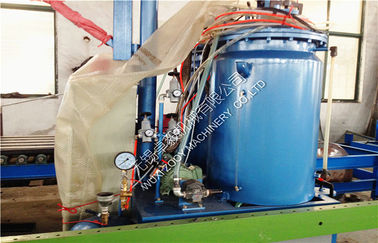

  • Polyurethane Foaming and Injecting Mill---------------------1 set
  • Heating device-----------------------------------------------------1 set
  • Double Belt conveyor (23m long)-------------------------------1 set
  • Automatic packing machine--------------------------------------1 set
  • Electrical control panel----------------------------------------- 1 set
  • Hydraulic station--------------------------------------------------1 set
  • Output table--------------------------------------------------------2 sets







MachineTechnical Specifications



1.Reciprocating times of injection head per minute: 2-6 m/min

2.Material Thickness: 25-100mm

3.Working speed: 4-15m/min

4.Number of Roller rows: about 16 to 20 row

5.Decoiler Type : hydraulic/ automatic

6.Decoiler ID: 510mm-610mm

7.Decoiler OD: Max 1300mm

8.Driven motion: motor

9.Transmission: Rubber Belt Conveyor

10.Roller material: GCR15 steel with heat treatment

11.Axis diameter: 80mm

12.Axis material: High grade 45# steel

13.Main motor: 30kw

14.Cutting dies material: GCr12 with quenched treatmentHR58-62

15.Control system: PLC frequency control system with touch screen

16.PLC brand: Japan panasonic

17.Encoder brand: Ombrand

18.Raw material: color steel, galvanzied steel





Machine Competitive Advantage:

  • Economical
  • Simple
  • Standard speed
  • High Quality
  • Reliable
  • Durable
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10Years Experience



Machine Features

  • Machine structure is very stable ,when machine running it is very safe
  • When producing another size of 1 shape you just need to change the spacers
  • The forming speed can be reach to 15m/min which can bring high production effiency.
  • Electrical motor gives the power to the chains or gear boxes to bring the machine to run It is very easy to install  the machine
  • Professional engineers have more than 15 years' experience in designing rollers and Roof tile manufacturing mill
  • High accuracy, length cutting tolerance is +/-1.5mm(per) it can guarantee the produts produced by the machine are very beautiful
  • Engineers adopted the advanced European technology and craft to design machines



Products Pictures



Flying Saw Cutting System PU Sandwich Panel Machine With 1 Set High Press PU Foaming machine 1





PU Sandwich Panel Machine Pictures





This PU Sandwich Panel Production Cold Rolling Machine is a kind of specialized equipment for producing sandwich panel with the middle layer of anti-combustion polyurethane and with roof forming panel as the top face layer, aluminum foil as the bottom face layer. The sandwich panel is between 25 and 200mm in thickness, 1000mm in width, length determined by the customer. The sandwich panel is mainly used as keeping warm for wall and roof . Different insulating panels with other soft facing layers could also be produced on the line.



The operation principle of this line is as follows: raw materials of rigid-foam are delivered into the mixing head through the metering pump on the injection machine and then injected onto the bottom facing sheet going to conveyors along with the top superficial sheet. Between the upper and lower conveyors, the liquid materials are hardened into shape,after all for above actions are completed, by an automatic tracking cutting mechanism, cut into segments according to the preset length.



Flying Saw Cutting System PU Sandwich Panel Machine With 1 Set High Press PU Foaming machine 2





Other Machines We Manufacturer



  Glaze tile, roof tile, roof sheet , roof panel, roof plate, quick interchangeable CZ PURLINS, C,Z,U , Sigma PURLINS, Stud and track, L, V, Slotted angle profiles, Double layer Roof panel, Highway guardrail, Roller shutter, door frame, door panel, Steel silo,Grain bin,PU Sandwich panel, Cable tray , solar energy support, BEAM, Door guiderail and many many kinds of roll forming machines
