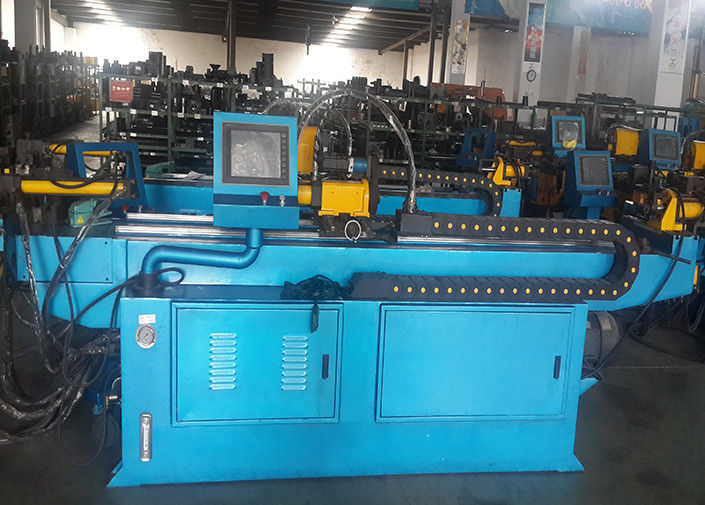

Cold Metal Pipe Bending Machines Automatic With R 25 - 200 110V 12MPa

Cold Metal Pipe Bending Machines Automatic With R 25 - 200 110V 12MPa

Quick Details

Condition: New                                                                                   Place of origin: Jiangsu China

Model Number: DW38WNC                                                             Machine Type: Pipe and Tube Bending Machine

Raw Material: Pipe                                                                             Power: Hydraulic

Certification: CE&ISO                                                                        Technical: Cold and Heating Bending

Cooling System: water cooling                                                           Extra Services: End Forming

Technical parameters:

Features:

1. Text display, PLC control, machine operation is very stable.
2. Choose a variety of functions with manual, automatic, semi-circle, full circulation.3. Five kinds of angle setting (0-185 degrees arbitrarily chosen) may also select multiple consecutive single choice.
4. Mobile pedal switch, with automatic start, emergency stop, emergency stop continued three functions, safe.
5. A cooling circulation system, more stable running of the machine
6. Mold replacement is simple and convenient, to facilitate flexible production.
7. Head, elbow arm compact design provides maximum bending space.

Works description:

The machine consists of main transmission mechanism, mandrel body, top feed mechanism, the main part of the clip feeding mechanism, electrical systems and hydraulic systems. In operation, the rotation of the motor driven pump, pressure oil is supplied, the microcomputer (PLC) to issue instructions to control the solenoid valve to open, close, so that the cylinders in a certain order and regularity actions to achieve the purpose of the bend.

Overview:

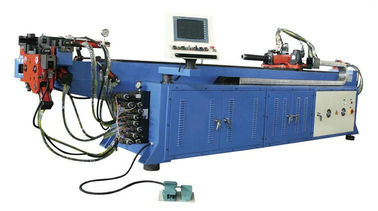

DW38 ,50-WNC single-head hydraulic pipe bender microcomputer control, hydraulic drive, Chinese subtitles, interactive operation, to achieve the cold state of pipes, profiles of bending. Text display can be set to a variety of angles, Mobile pedal switch with start, stop, stop three functions continue to make flexible, convenient, and reliable is an economical, practical pipe, profile processing equipment.
