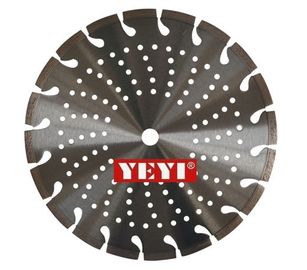

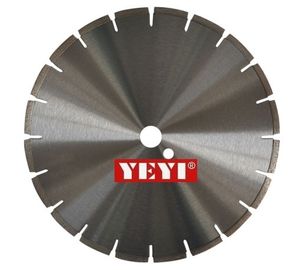

Dia 180mm 300mm 400mm Diamond Concrete , Sandstone , Asphalt Saw Blades Segmented Type

Dia 180mm 300mm 400mm Diamond Concrete , Sandstone , Asphalt Saw Blades Segmented Type

  • Dia 180mm 300mm 400mm Diamond Concrete , Sandstone , Asphalt Saw Blades Segmented Type
  • Dia 180mm 300mm 400mm Diamond Concrete , Sandstone , Asphalt Saw Blades Segmented Type
  • Dia 180mm 300mm 400mm Diamond Concrete , Sandstone , Asphalt Saw Blades Segmented Type
Dia 180mm 300mm 400mm Diamond Concrete , Sandstone , Asphalt Saw Blades Segmented Type
Product Details:
Place of Origin: China
Brand Name: YEYI
Model Number: YEYI-HSG
Payment & Shipping Terms:
Minimum Order Quantity: 200 pcs
Price: Negotiable
Packaging Details: Carton
Payment Terms: T/T
Contact Now
Detailed Product Description
Materials: Quality Steel Core With Good Balance Formula: Good Fomulated Segment
Machines: Advanced Sintering Production Line Quality: Different Quality Classifications For Options
High Light:

diamond blade grinder

,

diamond edge blade



Hot Pressed Sintered Diamond Saw Blade Segmented Type For Dry Cutting 300mm





Application:

Used for fast cutting kinds of Hard, Medium Hard, Soft Stone, like Granite, Marble, Sandstone, and ceramic, concrete, asphalt, brick, etc. on the manual cutting machines.



Specifications:



Diameter(D) Arbor (H) Core Segments Size(mm)  Art.
Inch  mm  mm  mm  Width(T)  Height(W)  Code
4”  105 16/20/22.23  1.2 1.8 7/10 SG105
4-3/8”  110 16/20/22.23  1.4 1.9 7/10 SG110
4-1/2”  115 20/22.23  1.4 1.9 7/10 SG115
5”  125 20/22.23  1.4 1.9 7/10 SG125
6”  150 20/22.23  1.4 1.9 7/10 SG150
7”  180 15.88/22.23/25.4  1.6 2.2 7/10 SG180
8”  200 22.23/25.4/30  1.8 2.4 7/10 SG200
9”  230 22.23/25.4/30/50  1.8 2.4 7/10 SG230
10”  250 22.23/25.4/30/50  2.2 3 7/10 SG250
12”  300 20/22.23/25.4/30/50  2.2 3.2 7/10 SG300
14”  350 22.23/25.4/30/50  2.2 3.2 7/10 SG350
16”  400 22.23/25.4/30/50  2.4 3.4 7/10 SG400



The above specifications are only for reference, other or special specifications could be supplied upon customers requests.





Advantages:

  • Using quality steel core and good formulated segments with high quality diamonds so as to make the excellent product of diamond saw blade hot pressed sintered.
  • Different formula according to the different applications. The formula could be modified according to customers' requirements. We could meet every customer's requirement.
  • And professional production lines, long time manufacturing and export experiences which could make sure the good quality consistency and achieve the positive feedback as always.
  • The diamond saw blades are produced by Hot press sintered craftsman which provide the diamond blades in similar performance as laser weld diamond blades, but keep the price lower than laser weld blades.



Please offer us below information while making the inquiry:

Diameter

Inner hole

Cutting materials (granite, marble, sandstone, limestone, slate, Etc.)

Type and Shape

Order quantity

Motor Power/rotation speed

Expected delivery time

Special requirement


Dia 180mm 300mm 400mm Diamond Concrete , Sandstone , Asphalt Saw Blades Segmented Type 0Dia 180mm 300mm 400mm Diamond Concrete , Sandstone , Asphalt Saw Blades Segmented Type 1Dia 180mm 300mm 400mm Diamond Concrete , Sandstone , Asphalt Saw Blades Segmented Type 2
