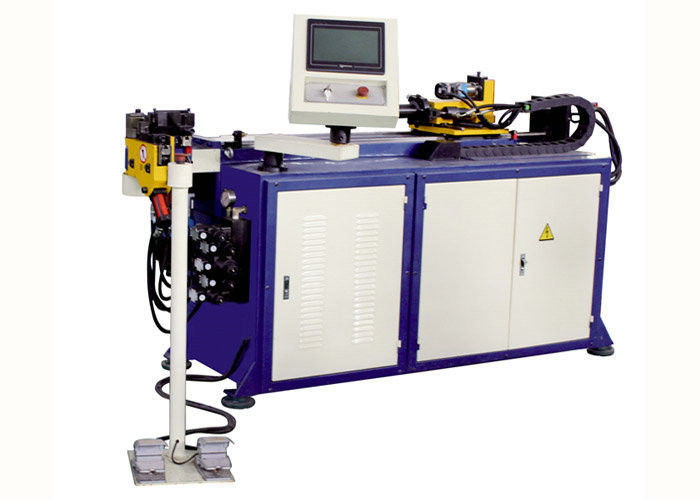

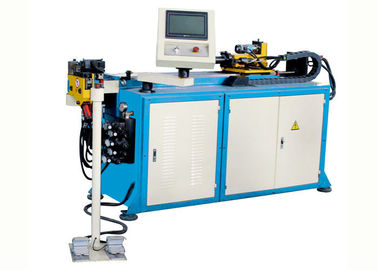

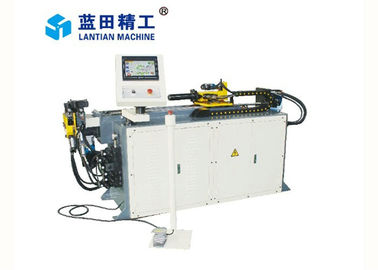

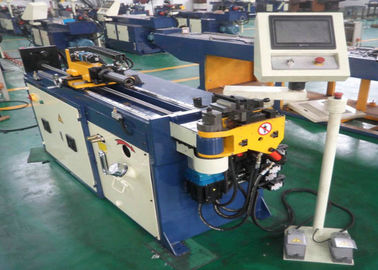

Metal CNC Pipe Bending Machine

Metal CNC Pipe Bending Machine

  • Metal CNC Pipe Bending Machine
  • Metal CNC Pipe Bending Machine
  • Metal CNC Pipe Bending Machine
  • Metal CNC Pipe Bending Machine
Metal CNC Pipe Bending Machine
Product Details:
Place of Origin: Jiangsu Province, China
Brand Name: Lantian Machine
Certification: ISO9001, CE
Model Number: SB15CNC-TSR-3A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Iron case or wooden case suitable for shipment
Delivery Time: 20 workdays
Payment Terms: 30% advance and 70% before shipment
Supply Ability: 20 set/sets per month
Contact Now
Detailed Product Description
CNC Or Not: CNC Machine Type: Tubing Bender
Material Processed: Metal, Carbon Steel, Aluminum, Copper Name: CNC Pipe Bending Machine
Operating Mode: Full Automatic Power: Hydraulic, Servo Motor, PLC, Electric
Raw Material: Pipe, Tube
High Light:

pipe bending equipment

,

tube bending machinery







Quick Detail:



CNC pipe bending machine

Full automatic 3D bending

Suitable for different material, carbon steel, stainless steel, alloy, aluminum, copper and so on

Using imported hydraulic system, electrics, servo motors, PLC unit and so on

Working fast and precisely





The features of SB15CNC-TSR-3A are listed:

1. Fully automatic and CNC pipe bending machine;

2. Equipped with 3 programmable axis;

3. Feeding: servo motor equipped with the ball screw;

Rotation: servo motor drive with reducer.

(servo motors are all from Mitsubishi);

4. Bending: Servo motor bending with reducer;

5. Imported hydraulic system, electric system, PLC unit and servo motors;

6. Automatic lubrication system for moving areas;

7. Self-diagnostic system, detecting the error immediately;

8. Multiple groups pipe-bending information storage;

9. Touch screen and human/machine interface control provide user friendly operations;

10. Electric cabinet cooling fan and the hydraulic cooling system ensure the equipment long-time work stably under the high temperature.





Technical parameters



Parameters

SB15CNC-TSR-3A

Max bending capability

Φ15×1.5 mm (copper, aluminum);

Φ10×1.25 mm (stainless steel)

Bending radius

6~50 mm

Bending angle

0~195°

Max clip pipe length

900 mm

Bending speed

280°/sec

Bending accuracy

±0.1°

Feeding speed

900 mm/sec

Feeding accuracy

±0.1 mm

Rotating speed

720°/sec

Rotating accuracy

±0.1°

Rotating motor power

200W

Feeding motor power

750W

Main motor power

1500W

System hydraulic pressure

4.5Mpa

Size

1800×750×1300mm

Weight

550kgs





Description:



SB15CNC-TSR-3A is the automatic 3D tube bender

The body of SB15CNC-TSR-3A is made through welding, the mechanical part through assembly; using imported hydraulic system and electronic control system.





Applications:



The machine SB15CNC-TSR-3A is widely used in the construction tube bending, decoration tube bending, automotive tube bending, air conditioner tube bending, pipe guardrail bending, car seats frame bending, door frame bending and some other industries.





Competitive Advantages:



1.The machine SB15CNC-TSR-3A has reasonable body design, which makes the bending space larger.



2.Stable hydraulic system ensures the machine working fast and free from hydraulic faults.



3.Important electric system makes more universality and accuracy.



4.Every part of the machine SB15CNC-TSR-3A is detected strictly before used.





FAQ:





1. Q: Are you a factory or trading company?

A: Yes, we are a factory.

2. Q: What certificate do you have?

A: We have both ISO and CE certificate.

3. Q: How does your factory do regarding quality control?

A: We have a special QC department in charge of products’ quality.

4. Q: How long is the warranty period?

A: All of our products have one year warranty.

5. Q: How much production capacity of your company one year?

A: This depends on your needs.

6. Q: Whats the main market of your company?

A: We have customers all over the world.

7. Q: Where is your factory located?

A: Our factory is located in Zhangjiagang City, Jiangsu Province, China, about 2 hours to Shanghai by car.

8. Q: Can we visit your machine operation in your factory?

A: We have own workshop, and we are enthusiastically looking forward to your visit guidance and business negotiations!

9. Q: How can we visit there?

A: We offer transportation service when you arrive in Shanghai or Jiangsu Province, China.
