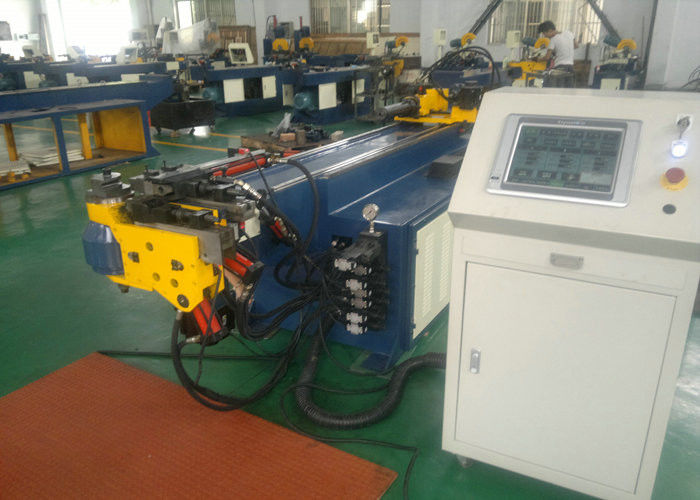

Full Automatic Metal Pipe Bending Machine For Rectangular Tube Bending



Full Automatic CNC Pipe Bending Machine For Rectangular Tube Bending



Quick Detail:



CNC tube bending machine

Full automatic 3D bending

Using imported hydraulic system, electrics, servo motors, PLC and so on

Suitable for different material, carbon steel, stainless steel, aluminum, copper and so on

Working fast and precisely





Technical parameters



Parameters	SB63CNC-TSR
Max bending capability	Φ63×3 mm
Bending radius	50~280 mm
Bending angle	0~195°
Max clip pipe length	2500 mm
Bending speed	45°/sec
Bending accuracy	±0.15°
Feeding speed	200~800 mm/sec
Feeding accuracy	±0.2 mm
Rotating speed	180°/sec
Rotating accuracy	±0.15°
Rotating motor power	0.75kw
Feeding motor power	1kw
Main motor power	5.5Kw
System hydraulic pressure	12MPa
Size	4800×1500×1350
Weight	2360kgs

Description:



SB63CNC-TSR  is the automatic 3D tube bender

The body of SB63CNC-TSR is made through welding, the mechanical part through assembly; using imported hydraulic system and electronic control system.

The features of SB63CNC-TSR are listed:

1. Fully automatic and CNC tube bending machine;

2. Equipped with 2 programmable axis;

3. Bending: Servo motor bending with reducer;

4. Feeding: servo motor equipped with the ball screw;

Rotation: servomotor drive with reducer.

(servo motors are all from Mitsubishi);

5. Imported hydraulic system, electric system and PLC unit;

6. Automatic lubrication system for moving areas;

7. Self-diagnostic system, detecting the error immediately;

8. Multiple groups pipe-bending information storage;

9. Touch screen and human/machine interface control provide user friendly operations;

10. Electric cabinet cooling fan and the hydraulic cooling system ensure the equipment long-time work stably under the high temperature.





Applications:



The machine SB63CNC-TSR is widely used in the indoor furniture tube bending, decoration tube bending, automotive tube bending, air conditioner tube bending, wire bending, car seats frame bending and some other industries.





Competitive Advantage:



The machine SB63CNC-TSR has reasonable body design, which makes the bending space larger.



Important electric system makes more universality and accuracy.



Every part of the machine SB63CNC-TSR is detected strictly before used.



Stable hydraulic system ensures the machine working fast and free from hydraulic faults.





FAQ:



1. Q: Are you a factory or trading company?

A: Yes, we are a factory.

2. Q: What certificate do you have?

A: We have both ISO and CE certificate.

3. Q: How does your factory do regarding quality control?

A: We have a special QC department in charge of products’ quality.

4. Q: How long is the warranty period?

A: All of our products have one year warranty.

5. Q: How much production capacity of your company one year?

A: This depends on your needs.

6. Q: What’s the main market of your company?

A: We have customers all over the world.

7. Q: Where is your factory located?

A: Our factory is located in Zhangjiagang City, Jiangsu Province, China, about 2 hours to Shanghai by car.

8. Q: Can we visit your machine operation in your factory?

A: We have own workshop, and we are enthusiastically looking forward to your visit guidance and business negotiations!

9. Q: How can we visit there?

A: We offer transportation service when you arrive in Shanghai or Jiangsu Province, China.
