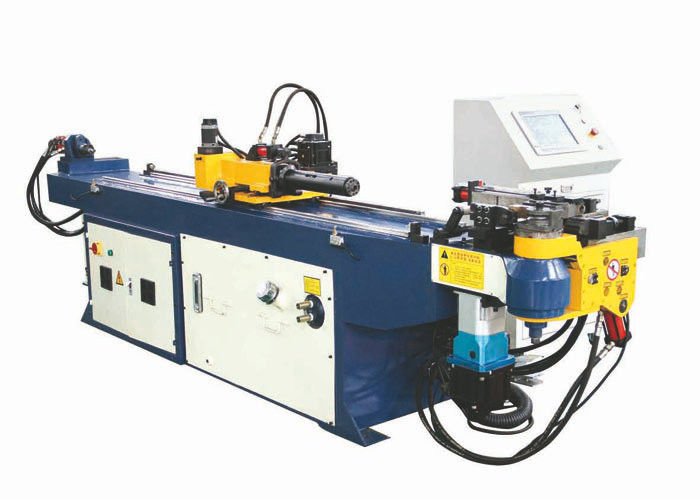

Full Automatic CNC Pipe Bending Machine Making Automobile Brake Tube

Full Automatic CNC Pipe Bending Machine Making Automobile Brake Tube

  • Full Automatic CNC Pipe Bending Machine Making Automobile Brake Tube
Full Automatic CNC Pipe Bending Machine Making Automobile Brake Tube
Product Details:
Place of Origin: Jiangsu Province, China
Brand Name: Lantian Machine
Certification: ISO9001, CE
Model Number: SB50CNC-TSR-3A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Iron case or wooden case suitable for shipment
Delivery Time: 20 workdays
Payment Terms: 30% advance and 70% before shipment
Supply Ability: 36 set/sets per year
Contact Now
Detailed Product Description
CNC Or Not: CNC Machine Type: Bending Machine, Tubing Bender
Material Processed: Metal, Carbon Steel, Stainless Steel, Aluminum, Copper Name: CNC Pipe Bending Machine
Operating Mode: Full Automatic Power: Hydraulic, Servo Motor, PLC, Electric
Raw Material: Pipe, Tube
High Light:

pipe bending equipment

,

metal pipe bending machine





Full Automatic CNC Pipe Bending Machine Making Automobile Brake Tube



Quick Detail:



CNC tube bending machine

Full automatic 3D bending

Suitable for different material, carbon steel, stainless steel, aluminum, copper and so on

Using imported hydraulic system, electrics, servo motors, PLC and so on

Working fast and precisely





Description:



SB50CNC-TSR-3A is the automatic 3D tube bender

The body of SB50CNC-TSR-3A is made through welding, the mechanical part through assembly; using imported hydraulic system and electronic control system.

The features of SB50CNC-TSR-3A are listed:

1. Fully automatic and CNC tube bending machine;

2. Equipped with 3 programmable axis;

3. Feeding: servo motor equipped with the ball screw;

Rotation: servo motor drive with reducer.

(servo motors are all from Mitsubishi);

4. Bending: Servo motor bending with reducer;

5. Touch screen and human/machine interface control provide user friendly operations;

6. Automatic lubrication system for moving areas;

7. Self-diagnostic system, detecting the error immediately;

8. Multiple groups pipe-bending information storage;

9. Imported hydraulic system, electric system and PLC unit;

10. Electric cabinet cooling fan and the hydraulic cooling system ensure the equipment long-time work stably under the high temperature.





Applications:



The machine SB50CNC-TSR-3A is widely used in the automobile brake tube bending, bumper tube bending, air conditioner tube bending, wire bending, car seats frame bending and some other industries.





Specifications:





Technical parameters





Parameters

SB50CNC-TSR-3A

Max bending capability

φ50×2 mm

Bending radius

35~200 mm

Bending angle

0~195°

Max clip pipe length

2200 mm

Bending speed

70°/sec

Bending accuracy

±0.15°

Feeding speed

200~800 mm/sec

Feeding accuracy

±0.2 mm

Rotating speed

270°/sec

Rotating accuracy

±0.15°

Rotating motor power

750W

Feeding motor power

1500W

Main motor power

5.5Kw

System hydraulic pressure

12MPa

Size

4400×1200×1300

Weight

1860kgs







Competitive Advantage:



The machine SB50CNC-TSR-3A has reasonable body design, which makes the bending space larger.



Stable hydraulic system ensures the machine working fast and free from hydraulic faults.



Important electric system makes more universality and accuracy.



Every part of the machine SB50CNC-TSR-3A is detected strictly before used.





FAQ:



1. Q: Are you a factory or trading company?

A: Yes, we are a factory.

2. Q: What certificate do you have?

A: We have both ISO and CE certificate.

3. Q: How does your factory do regarding quality control?

A: We have a special QC department in charge of products’ quality.

4. Q: How long is the warranty period?

A: All of our products have one year warranty.

5. Q: How much production capacity of your company one year?

A: This depends on your needs.

6. Q: Whats the main market of your company?

A: We have customers all over the world.

7. Q: Where is your factory located?

A: Our factory is located in Zhangjiagang City, Jiangsu Province, China, about 2 hours to Shanghai by car.

8. Q: Can we visit your machine operation in your factory?

A: We have own workshop, and we are enthusiastically looking forward to your visit guidance and business negotiations!

9. Q: How can we visit there?

A: We offer transportation service when you arrive in Shanghai or Jiangsu Province, China.
