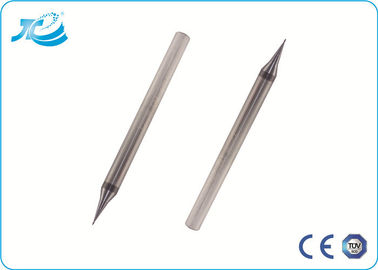

TiAlN Coating Solid Carbide Cutting Tools , 0.5 mm Micro Diameter Flat End Mill

TiAlN Coating Solid Carbide Cutting Tools , 0.5 mm Micro Diameter Flat End Mill

  • TiAlN Coating Solid Carbide Cutting Tools , 0.5 mm Micro Diameter Flat End Mill
TiAlN Coating Solid Carbide Cutting Tools , 0.5 mm Micro Diameter Flat End Mill
Product Details:
Place of Origin: China
Brand Name: JT
Certification: CE,TUV
Model Number: JT
Payment & Shipping Terms:
Minimum Order Quantity: 20pcs
Price: Negotiation
Packaging Details: Each products packed with bubble and then Putted in carton firstly,finally reinforced with wooden case for outer packing
Delivery Time: 5 working days after received your payment
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200,000pcs per month
Contact Now
Detailed Product Description
Product Name: TiAlN Coating Solid Carbide Cutting Tool Flat 0.5 Mm Micro Diameter End Mill Diameter: 0.6mm
Ingredient: Co: 10-12%, WC: 88-90% Flute Length: 0.2 To 1.8 Mm
Grain Size: 0.2-0.6μm Flute: 2 Or 4
Coating: TiAlN Customizable: Yes
High Light:

micro endmills

,

miniature end mills

TiAlN Coating Solid Carbide Cutting Tools , 0.5 mm Micro Diameter Flat End Mill



Description



1. Reduce the rudding coefficient and save the processing time, Specializing in high speed cutting of CNC drilling machine and dry-type process machining.
2. Solid carbide lasting long life in hardened steels, Grain size carbide, high toughness, high -wearing feature.
3. The shank can be customized according to customers' requirements.
4. We supply different type of drills bits, such as twist drills, center drills, spot drills, coolant drill bits.



We use 100%  original raw material, the micro grain tungsten carbide powder and cobalt powder(from German)to make the carbide rod, hardness can be 92.5-94.0(HRA), and T.R.S. is 4200-4800(N/mm2), this carbide rod can ensure the end mills with very strong abrasive resistance and impact strength.



Original raw micro grain material, high hardness and T.R.S.



   1, Co: 10-12%, WC: 88-90%,

        Grain size: 0.2-0.6μm,

        Hardness: 92.5-94.0 HRA,

        T.R.S.: 4200-4800 N/mm2,

        Density: 14.3-14.8 G/cm3



   2, We got 250T Extruder, 10MPa Overpressure Sintering Furnace-Vacuum

       Dewaxing, these two equipments are very very important for manufacture and high quality carbide rods.



   3, We use our own carbide rod for 90% of cutting tools.



   4, We have introduced advanced CNC grinding machines in operating,Rollomatic,Schneeberger from Switzerland, ANCA from Australia, Zoller from German,KEYENCE from Japan,set  up(Japan FANUC, brother processing center) tool laboratory   test cut.Our technology from Taiwan. Guarantee high precision and good performance.



    5, Helix Angle: 38-42 °(we could do 4 of them are 37°)

         Diameter of cutting edge: 0.1-0.9mm

         Diameter of rods: 4mm

         Length: 50mm

         Cutting Form: Ball nose, Corner Radius, Taper Flute, etc.

         Flutes No.: 2 - 4





 Super coating



     TiAN,TiCN TiN  and  ARCO ,

     improve tool life, reduce the coefficient of friction.





 Applications



    Copper, Cast Iron, Carbon steel, Tool steel,

    Mould steel, Die steel, Stainless steel, Plastic, Arcylic, etc.





 Price Performance Ratio



   From tungsten powder to end mills, that's the reason of our competitiveness!

   Make sure about each piece end mill has a good quality,high precision and good performance.

   More discount will be offered according to exact quantity.

   Welcome to be our agents, OEM is also available.





Specifications



Model NO.

Diameter/D1

Flute Length/L1

O.A.L/L3

Shank Dia/D2

JT2001

0.1

0.2

50

4

JT2002

0.2

0.4

50

4

JT2003

0.3

0.6

50

4

JT2004

0.4

0.8

50

4

JT2005

0.5

1.0

50

4

JT2006

0.6

1.2

50

4

JT2007

0.7

1.4

50

4

JT2008

0.8

1.6

50

4

JT2009

0.9

1.8

50

4





Products display



TiAlN Coating Solid Carbide Cutting Tools , 0.5 mm Micro Diameter Flat End Mill 0TiAlN Coating Solid Carbide Cutting Tools , 0.5 mm Micro Diameter Flat End Mill 1TiAlN Coating Solid Carbide Cutting Tools , 0.5 mm Micro Diameter Flat End Mill 2
