Prefab House PU Sandwich Panel Machine

Prefab House PU Sandwich Panel Machine

  • Prefab House PU Sandwich Panel Machine
  • Prefab House PU Sandwich Panel Machine
Prefab House PU Sandwich Panel Machine
Product Details:
Place of Origin: China
Brand Name: RISHBIN
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Contact Us
Packaging Details: Standard packing
Delivery Time: 100 working days
Payment Terms: T/T, L/C
Supply Ability: 50 Sets Per Year
Contact Now
Detailed Product Description
Thickness Of Steel Plate: 0.35-0.6mm PU Foam Density:: 38-42kg/m3
Thickness Of Galvanizes Color Steel Coil: 0.4mm~0.75mm PU Foam Thickness: 25mm - 100mm
Power Of Production: ≥ 22KW Controlling System: Full-frequency PLC
High Light:

continuous pu sandwich panel production line

,

sandwich panel machinery

Prefab House Color Steel PU Sandwich Panel Machine Fire resistant



Quick Details

Panel Material:
Metal
Type:
PU cement sandwich panel,machine for PU cement sandwich panel, light P
Color:
red, white and blue are common, or costomization
Usage:
Construction Insulation
Features:
1.Fire resistant; 2.Heat Insulating; 3.Light Weight
Commodity:
Color Steel PU sandwich panel
Category:
Roof panel,wall panel,cold plate,etc
Outer Layer Material::
Color Steel/Aluminum/Non Woven Fabric
Core material:
PU/Polyurethane
Thickness of colorful steel plates:
0.3mm-0.7mm
Thickness of PU core::
20mm, 30mm, 40mm, 50mm, 60mm,75mm, 100mm, 150mm, 200mm, 250mm, 300mm
PU foam density:
38-42kg/m3




Specifications

Lenghth: customization
Width:customization
Thickness of steel plate: 0.35-0.6mm
Thickness of Core Material: 20mm, 30mm, 40mm, 50mm, 60mm,75mm,
                                            100mm,150mm, 200mm, 250mm, 300mm
Color: White grey, Sliver, Sea Blue, Red, etc


Features:


1. Fire resistant;
2. Heat Insulating;
3. Light Weight
4. easy installation;
5. Environment-protecting;
6. nenergy-sving;
7. more economic.


Specification Detail


Item  Description
Two sets of un-coiler It is Automatic and hydraulic, can be used to uncoil steel coil which is maximal 1300mm's wide, no more than 8 ton's weighty and steel coiler's inner diameter is about 500mm.
Three sets of roll forming machine 1. Function: Roll forming for the profiles of PU panel
2. Use the welding H-beam, motor driver, sprocket chain driving
3.Technical data: Material of roller NO.45forged steel, with digital controlled procession,plated with hard chrome on surface of forming rollers

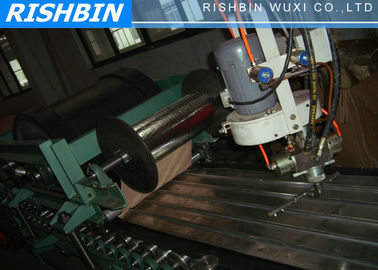

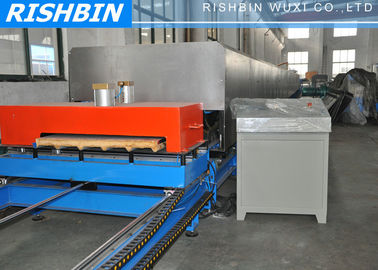

PU sandwich foaming line 1. Two sets of conveyor rack: up conveyor is about 24m, down conveyor is about 30m.They lead the steel sheet from the roll forming machine to preheating room and to foaming,to cutting.
2. One preheating room: It is built by heat-insulation material, and it could heat up the steel sheet to 25-38 by heater.
3. One set of PU two component Liquid mixing and injecting section for foaming : it adopt Chinese high pressure pump. It have the temperature control system and material-level monitoring system. The tank of the material is about 150L. Two tanks.
4. Foaming and double rubber device include motor driver system to make panel.
5. The width of belt board is 1250mm, the range of adjusting distance between upper and lower frame belt board: min 25mm, max 200mm. And the range of adjusting thickness of sandwich panel :30mm,50mm,100mm.(30-50 for celling , 50-100 for wall)
Panel automatically cutting system 1. Cutting machine can move 2500mm longitudinally along product line;fly saw of the cutting machine can move transversely 1900mm, Cutting machine moves longitudinally and transversely along the slide way.
2. Cutting machine adopts one-side blade band saw manner, cutting and revolving after cutting. The cutting saw can revolve, so cutting in two directions is realizable.
3. There is panel tight-pressing system (pneumatic) in the cutting machine.
4. There is location limiter to limit longitudinal and transverse motion of cutting machine.
Electric control system 1. The control system adopt the touch screen , PLC , module control and transducer. The control system adopt Panasonic(JAPAN) product.
2. There one control platforms and electric trunk by which operating and controlling the electric motors and all motions (including hydraulic and pneumatic) in the product line.
3. Intercalated appropriate amount of portable switch on the product line, so manual operation get convenient.
4. Alarm and emergency stop system should be installed in the product line in case accident happens.




Product Description


Polyurethane sandwich panel ( exterior PU sandwich panel  ) is composed of two layers of pre painted steel sheets with the hard forms of polyurethane as core, which features fireproof materials. It is suitable for the various roofs and walls referring to the large-size factory buildings, storages, exhibition halls, gymnasiums, freezing stores, purification workshops etc, which features temperature-keeping, heat insulation, weight-bearing, weatherproof with the rich color and good appearance.
