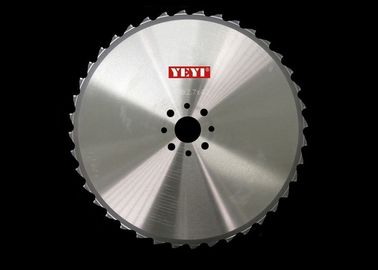

460mm Metal Cutting Saw Blades / Cold Cut Saw Cermet Tips 40Z With Long Life

460mm Metal Cutting Saw Blades / Cold Cut Saw Cermet Tips 40Z With Long Life

  • 460mm Metal Cutting Saw Blades / Cold Cut Saw Cermet Tips 40Z With Long Life
  • 460mm Metal Cutting Saw Blades / Cold Cut Saw Cermet Tips 40Z With Long Life
460mm Metal Cutting Saw Blades / Cold Cut Saw Cermet Tips 40Z With Long Life
Product Details:
Place of Origin: China
Brand Name: YEYI
Model Number: YEYI-460x2.7x2.25x40Z
Payment & Shipping Terms:
Minimum Order Quantity: 20 PCS
Price: Negotiable
Packaging Details: Plastic pipe+ plastic bag+ paper box+ carton
Payment Terms: T/T
Contact Now
Detailed Product Description
Steel Core: Imported Steel Core Or Quality Materials With Good Flatness Tips: High Quality Carbide Tips Or Imported Cermet Tips
Equipments: Auto Welding And Auto Grinding Machines Quality: Extra Long Cutting Life With Good Sharpness
High Light:

hss circular saw blad

,

saw blades to cut steel


460mm Steel Tube Metal Cutting Saw Blades / Cold Cut Saw Cermet Tips 40Z With Long Life


Specifications:

460mm Metal Cutting Saw Blades / Cold Saw Blade Cermet Tips 40Z With Long Life


460x2.7x2.25x40Z

Product details:

  • Edge (tip) material: Cermet. Cermet tip imported from Japan, we’re using Mitsubishi or Sanvik.
  • Steel body uses Japanese SKS steel: SKS51 or SKS5.
  • Flattening and Surface grinding ensure the plate that is distortion free and have uniform thickness.
  • Unique design for the angle of tip and unique shape of tip for metal cutting.
  • Unique Heat treatment for the plates, which make sure the plates in good flatness.
  • Special brazing technology makes sure the strength of the teeth so as to prevent carbide breakage.
  • High dimensional accuracy makes sure the operation more smoothly.
  • Unique tension treatment could keep the most stable performance while cutting.
  • Special coating for metal cutting is applied.
  • Suitable for most of metal cutting machines in the world such as Nishijia, Amada, Anderson, Tsune, Mega, Fongho,Soco,Everising, I.T.E.C. etc.
  • Manufacturing with Japanese technology and design in Japan. Remaining cool while cutting and longer the using life. It is Throw-away type and non-resharpenable.



Diameter

Kerf

Plate

Teeth number

Teeth type

Hook Angle

Recommend RPM

Machine

Cutting

material

460mm

2.7mm

2.25mm

40

Cermet tip



below 300

NISHIJIAMA,TSUNE,

DELTA,ANDERSON,

I.T.E.C,AMADA,MEGA,

SOCO,FONGHO,

Webo,and other suitable metal cutting machine.

Steel pipe or bar







Descriptions:
A cold saw is a sawing machine that uses a circular saw blade to cut metal. The name "cold saw" comes from the cutting process they employ. These sawing machines transfer the heat generated by cutting to the chips created by the saw blade. Therefore, the blade and material being cut remain cold, unlike an abrasive saw, which abrades the metal and creates a great deal of heat in the metal and cutting blade.

The new YEYI cermet tipped metal cutting cold saw blade leads the great job for the metal cutting work. Saw blade body use SKS5 or SKS51 steel which is imported from Japan. And with YEYI unique tension technology, the saw blade has a stable and quiet response when cutting.

Unique shape and angle of cermet tip are quite different form the HSS saw blade. Metal cutting could be much easier while using YEYI metal cutting cold saw blade.

The tip using is Cermet tip which is imported from Japan. What is cermet tip?

The cermet is a composite material composed of ceramic (cer) and metallic (met) materials. The cermet is ideally designed to have the optimal properties of both ceramic, such as high temperature resistance and hardness, and those of a metal, such as the ability to undergo plastic deformation. The metal is used as a binder for an oxide, boride, or carbide. Generally, the metallic elements used are nickel, molybdenum, and cobalt. Depending on the physical structure of the material, cermets can also be metal matrix composites, but cermets are usually less than 20% metal by volume.

Cold saw using the cermet tip in order to keep the stability of metal cutting and keep the saw blade cool all the time. So it can increase the cuttinglife.

We use imported brazing machine for brazing the tip and use the Japanese grinding machine for grinding the saw blade teeth.

Application:
Suitable cutting machine: NISHIJIMA, TSUNE, AMADA, ANDERSON, I.T.E.C, FONGHO, SOCO,EVERSIING, MEGA, DELTA Webo and other metal cutting machines.

Cutting materials: steel bar or pipe.

Advantage:



  • We use Japanese saw blade steel. Body’s quality is much better than other companies.
  • In order to keep the saw blade working stable, every saw blade has the tension treatment by hands.
  • Imported cermet tip (sandivk and Mitsubishi) keeps the excellent cutting performance.
  • All the welding machines and grinding machines are imported from Japan.
  • In order to get the best cutting results, our Japanese technical staff would modify the design after getting the customers’ feedback.


Cutting material recommend:



Diameter Teeth Recommend diameter of material
460mm 40 85~145mm





Machines recommend:



Diameter Machine manufacturer Machine model
460mm Noritake NCS-2/150
460mm Nishijima NHC-150NA
460mm Everising P-150A
460mm Mega CS-150



*The list haven't show the all machines. All the metal cutting cold saw machines can use our saw blade.


Benefit:
Different from band saw and metal saw (hss). The cold saw blade will give you lots of benefit.
One cold saw mahine can replaces three band saws or metal sawmachines.
1. Less space
2. Less labor
3. Less environmental pollution
4. Less captial outlay
5. lower cost per cut
6. Saving the cutting time.
