35kw Ceiling Polyurethane Sandwich Panel Production Line With Aluminum Foil Facing

35kw Ceiling Polyurethane Sandwich Panel Production Line With Aluminum Foil Facing

  • 35kw Ceiling Polyurethane Sandwich Panel Production Line With Aluminum Foil Facing
  • 35kw Ceiling Polyurethane Sandwich Panel Production Line With Aluminum Foil Facing
  • 35kw Ceiling Polyurethane Sandwich Panel Production Line With Aluminum Foil Facing
  • 35kw Ceiling Polyurethane Sandwich Panel Production Line With Aluminum Foil Facing
35kw Ceiling Polyurethane Sandwich Panel Production Line With Aluminum Foil Facing
Product Details:
Place of Origin: CHINA
Brand Name: ZOOY
Certification: CE
Model Number: ZO-PU600
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: USD150000$-400000$
Packaging Details: Standard packing
Delivery Time: 100days after get 30% down payment
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 10Sets Per Year
Contact Now
Detailed Product Description
Feature: PU Sandwich Panel Production Line Control System: Japan Panasonic PLC Control
Forming Speed: 4-20m/min Material Thickness: 25-100mm
Material: Galvanized Sheet. Glavanized Steel Warranty: 1 Year
High Light:

pu sandwich panel production line

,

polyurethane sandwich panel production line





Ceiling PU Sandwich Panels Production Line with Aluminum Foil Facing, 35kw Main Power





Description



1.This production line is a kind of specialized equipment for producing sandwich panel with the middle layer of anti-combustion polyurethane and with roof(OR wall/ceiling) forming panel as the top face layer, aluminum foil as the bottom face layer. The sandwich panel is 18 mm in thickness, max1000mm in width, length determined by the customer. The sandwich panel is mainly used as keeping warm for wall and roof . Different insulating panels with other soft facing layers could also be produced on the line.

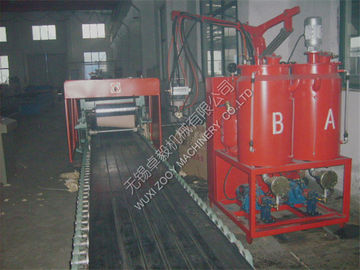

2.The operation principle of this line is as follows: raw materials of rigid-foam are delivered into the mixing head through the metering pump on the injection machine and then injected onto the bottom facing sheet going to conveyors along with the top superficial sheet. Between the upper and lower conveyors, the liquid materials are hardened into shape,after all for above actions are completed, by an automatic tracking cutting mechanism, cut into segments according to the preset length.







Main Specifications


Coil Material

Thickness

0.3-0.8mm

Coil width

Depend on customer’s requires

Yield Strength

250-550Mpa

Material

Color steel,  galvanized steel

Decoiler / Uncoiler

Coil Width

Max. 1250mm

I.D

510-610mm

O.D

Max. 1300mm

Capability

Max. 8Tons

Decoiler type

Manual / Hydraulic/Automatic

Feeding & guiding

Pinch feeding

1 Units ( 2 Rollers )

guiding

2 Rollers

Cutting device

Cutting motion

Cutting adopts tracking cutting

 and saw (or fly saw) of the cutting machine can move transversely 1500mm, Cutting machine moves longitudinally and transversely along the slide way

Cutting machine adopts one-side blade band saw manner, cutting and revolving after cutting. The cutting saw can revolve, so cutting in two directions is realizable

Length Measuring

 BY encoder

Cutting Tolerance

+/-1.5mm(per 3m)

PU sandwich panel

thickness

15-40

Standard Sandwich Panel Size

max1100mm x 4000mm(Width x Length)

Linear Speed of production

2-5 m/min

Reciprocating times of injection head per minute

<60

Control system

Production type: totally continuous production with PLC controlling

Roll Forming Machine

Forming Stations

ABOUT 18-24steps



Roller material

45# steel, heat treatment

Diameter of shaft

75mm

Shaft material

High grade 45# steel

Drive type

By chains

Forming speed

0-15m/min

Main power

7.5kw




Electrical control

PLC

PANASONIC Brand or Custom-made

Inverter

YASKAWA Brand or Custom-made

Touch screen

MCGS Brand or Custom-made

Operation type

Touch screen & Button

Runout Table

Table type

Simple non-power type

Function

To support the finished panels

TOTAL WEIGHT



APRRO 20TONS




The type pursues board (basis on customer's requires to design)

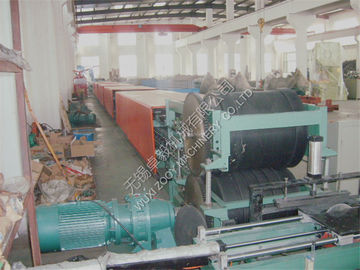

35kw Ceiling Polyurethane Sandwich Panel Production Line With Aluminum Foil Facing 0

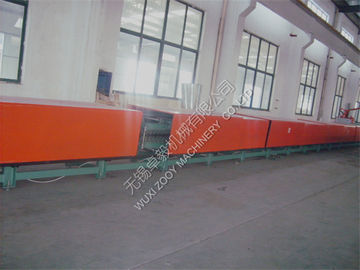

35kw Ceiling Polyurethane Sandwich Panel Production Line With Aluminum Foil Facing 1





We also produce other Roll forming machines as follow:



  • Purlin Roll Forming Machine
  • Upright post roll formers
  • Stud and track forming machines
  • T-bar forming machines
  • Guardrail roll forming machines
  • Cable tray roll forming machines
  • Roller shutter manufacturing lines
  • PU sandwich panel production line
  • Steel Silo Roll Forming Machine
  • Gutter machines and downspout machines
  • Metal roofing /decking/cladding roll forming machines
  • Roof tile roll forming machines
  • Door & window frame roll forming machines
  • Guide rail roll forming machines



Other Parts of C Z Roll Forming Machine

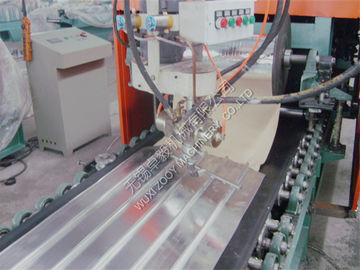

35kw Ceiling Polyurethane Sandwich Panel Production Line With Aluminum Foil Facing 2







Payment Terms


Procuments Aspect  Detailed Rules
Payment Terms

The payment shall be made by L/C or T/T(30% down payment and the balance for 70%
shall be paid before container loading at the seller`s factory when the buyer confirms the quality is up
to the contracted requirements

Delivery Time

30-65 working days.

Warranty

1 year warranty from date of shippment.

Packing

Suitable for sea transportation.Usually one High precision Grape stake roller formed facility loads
in one container.Depends on the machine's size and weight







Contact Us




Company : ZOOY Machinery CO,Ltd

Email:         wxzooy machinery@yahoo.com

Skype:        wxqinghing

Website:    www.rollerformingmachine.com

                   www.wxzooy.com



Contact Person: Crystal Zhao

Cell: +86-13564970040







 If you want to buy the most economic , best quality CZ Quick Interchangeable roll forming machine, Zooy machinery will be your best choice.
